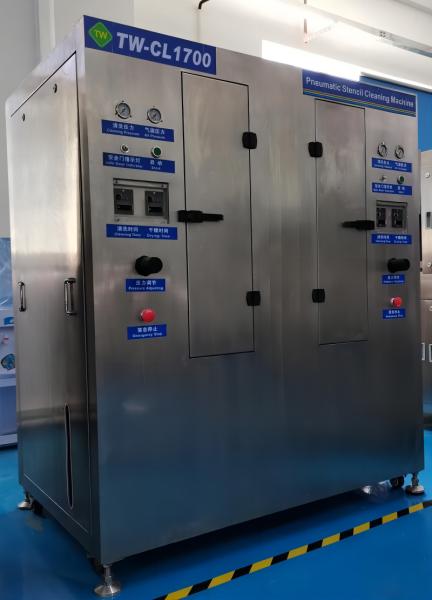

One-touch fully pneumatic cleaner for cleaning two stencils at the
same time TW-CL1700
Product Description:
This fully pneumatic stencil cleaner has two separate cleaning
systems that can clean completely different types of workpieces at
the same time (e.g., cleaning red glue and solder paste stencils at
the same time, or cleaning leaded and lead-free solder paste at the
same time, etc.).
Features:
1. Full stainless steel body: beautiful, wear-resistant,
corrosion-resistant, in line with environmental requirements and
standards;
2. Full pneumatic operation, no electricity, no fire and other
safety hazards, has passed the EU safety regulations certification;
3. High-density isobaric dual-side rotary cleaning nozzle: strong
cleaning power and will not destroy the stencil tension;
4. Four-stage filtration system, low vent pipe design: solvent
recycling, low liquid consumption;
5. System integration of global quality devices: to ensure good
quality, stable performance and long service life;
6. This machine has two sets of independent cleaning system, can be
cleaned at the same time two completely different kinds of stencil.
(different size stencils, different types of stencils)
Technical Parameters:
Spray Cleaning Machine| Parameters | Specifications |
|---|
| Cleaning time | 0-999 seconds (adjustable) |
| Air supply | 0.45Mpa ~ 0.7Mpa |
| Cleaning method | 360° Rotary Cleaning Solution Spraying And High-pressure Air
Blowing (cleaning → Drying) |
| Reservoir capacity | 80L*2 |
| Drying method | Compressed Air Drying |
| Applicable stencil size | Maximum750mm(L) × 750mm(W) × 40mm(H) Special Size On Request. |
| Weight | 600KG |
| Working ability | Maximum two pieces at a time: 750(L)X 750(W)X40(H) mm |
| Cleaning fluid capacity | 85L |
| Filtration | Circulation filtration of cleaning solution (0.45μm) |
| Drying method | Compressed air blow-drying |
| Object of cleaning | Residues of solder paste, red glue, ink, etc. |
| Operating mode | one-touch start |
| Static (in a signal) | ＜70db |
| Exhaust port size | 1 exhaust port φ100mm x 30mm high |
Workflow
Plate release→chemical cleaning→compressed air blow-drying→plate
removal
Working Principle:
Connected to the gas source, add the appropriate cleaning fluid in
the liquid tank tank, long press the start button for 5 seconds the
machine into automatic operation, pneumatic diaphragm pump began to
work, the liquid through the diaphragm pump into the filter
filtered rotating spray to the stencil, cleaning spray to the set
time, the cleaning process is complete; and then into the
blow-drying process, compressed air blowing off the stencil residue
of the drug and recycled to the cleaning box until the set time So
far, the whole workflow is completed.
A1: The brand name of the Spray Cleaning Machine is TongWei.
A2: The model number of the Spray Cleaning Machine is TW-CL1700.
A3: The Spray Cleaning Machine is manufactured in Shenzhen, China.
A4: The Spray Cleaning Machine has a host of features, such as
adjustable nozzle, variable speed control, and a wide range of
cleaning applications.
A5: Yes, the Spray Cleaning Machine is easy to use and comes with a
comprehensive instruction manual.
