Product Description:

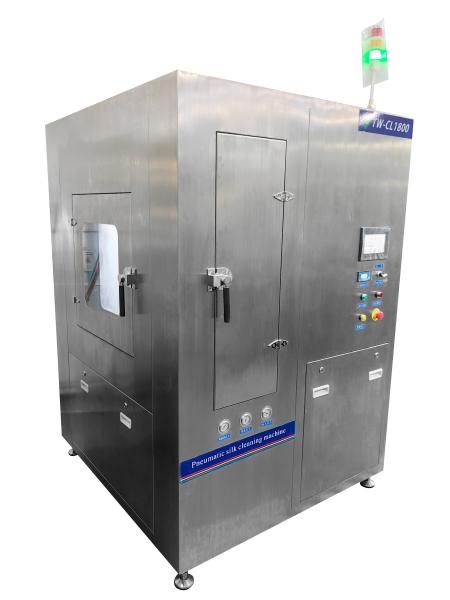

TW-CL1800 electric stencil cleaner is a fully automatic
energy-saving and environmentally friendly stencil cleaning
equipment which integrates cleaning, rinsing and drying functions.
This equipment is suitable for cleaning all kinds of printing
stencils in SMT industry, such as stencil, silk screen, copper
screen, rubber screen, microporous screen, etc. The equipment is
driven by electricity and used with water-based cleaning agent to
achieve high efficiency and high productivity. The equipment is
driven by electricity and used with water-based cleaning agent to
achieve efficient and fast cleaning, saving time and labor.
Features:
- All-stainless steel body: Beautiful, wear-resistant, and
corrosion-resistant, complying with environmental requirements and
standards.
- Complete cleaning process: The cleaning, rinsing, and drying
processes are performed in one cleaning room, resulting in a
compact structure and small volume.
- High-density equal-pressure bilateral symmetric complementary
cleaning nozzle: Provides strong cleaning force without damaging
the tension of the steel mesh.
- Four-stage filtration system and low exhaust duct design: Enables
solvent recycling and low liquid consumption.
- Visual window in the cleaning room: Allows clear observation of the
cleaning process.
- Resistivity monitoring: Allows setting of the resistivity and
control within the range of 0-18M Ω.
- Stable and reliable imported brand color touch screen: Provides
control over various parameters such as solvent temperature,
cleaning time, rinsing frequency/time, rinsing temperature, drying
time, drying temperature, and conductivity monitoring parameters.
- Environmentally friendly operation: The equipment uses water-based
liquid cleaning agents and DI water for rinsing, resulting in no
safety hazards or harm to personnel.
- Energy-efficient and low noise: The equipment has low energy
consumption, low operating noise, and meets the ROHS and
halogen-free requirements of the electronics industry.
- Enhanced safety features: The equipment is equipped with electronic
alarm monitoring meters for all air pressures, an anti-leakage
tray, a leakage sensing device, and emergency stop switches.
Technical Parameters:
| Parameters | Details |
|---|
| Object of Cleaning | Stencils, Screens, Misprinted Boards, Etc. |
| Cleaning Method | Left And Right Mobile High-pressure Spraying |
| Equipment Size | L1300×W1400×H1950 (mm) |
| Drying Time | 0-99 Minutes Adjustable |
| Drying Temperature | Ring Temperature ~100°C |
| Cleaning Temperature | Ring Temperature ~75°C |
| Resistivity Meter Monitoring Range | 0~18MΩ |
| Operating Mode | Fully Automatic Cleaning At The Touch Of A Button |
| Wash Tank Capacity | 80L |
| Rinsing Time | 0-99 Minutes Adjustable |
| Cleaner Type | Water-based Stencil Cleaner |
| Design | All-electric Screen Cleaning Machine |
| Spray pressure | 30PSI~90PSI (adjustable) |
| DI water supply | Flow rate: 5-15L/min ≦0.2Mpa |
| Air supply | 0.45Mpa ～0.7Mpa |
| Air vent size | Φ102mm (discontinuous exhaust) |
| Exhaust volume | 5m³/Min |
| static (in a signal) | ＜70 dB |
| Rating | Three-phase five-wire AC380V 50HZ 35KW |
Applications:
The TW-CL1800 screen cleaner is suitable for use in various
industries, including military, instrumentation, communication,
industrial, and semiconductor industries. It is specifically
designed for the daily cleaning of highly reliable products in
these sectors.
Support and Services:
Technical Support and Service of Automatic Screen Cleaning Machine
We provide technical support and service for our Automatic Screen
Cleaning Machine. Our support team is available for inquiries and
assistance 24 hours a day, 7 days a week.
We provide a comprehensive range of support services for our
customers, including:
- Troubleshooting and problem solving
- Replacement of defective parts
- Installation and maintenance
- Software updates
- Technical advice
If you require any assistance with your Automatic Screen Cleaning
Machine, please contact us via email, telephone or live chat.
FAQ:
- Q1: What is the Brand Name of Automatic Screen Cleaning Machine?
- A1: The Brand Name of Automatic Screen Cleaning Machine is TongWei.
- Q2: What is the Model Number of Automatic Screen Cleaning Machine?
- A2: The Model Number of Automatic Screen Cleaning Machine is
TW-CL1800.
- Q3: Where is the Place of Origin of Automatic Screen Cleaning
Machine?
- A3: The Place of Origin of Automatic Screen Cleaning Machine is
Shenzhen, China.
- Q4: What are the features of Automatic Screen Cleaning Machine?
- A4: The features of Automatic Screen Cleaning Machine includes:
Quick and effective cleaning, Low noise, Low power consumption,
Easy to use and operate, etc.
- Q5: What kind of cleaning liquid can be used in Automatic Screen
Cleaning Machine?
- A5: The cleaning liquid used in Automatic Screen Cleaning Machine
should be non-toxic and non-irritating liquid.
